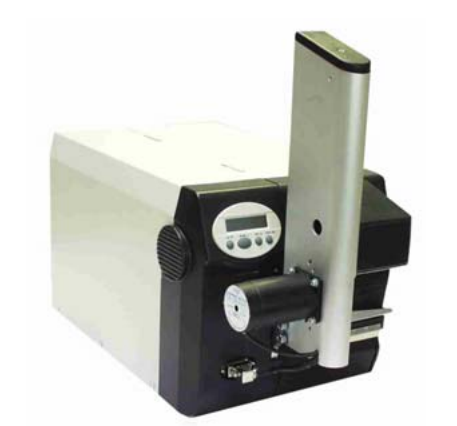

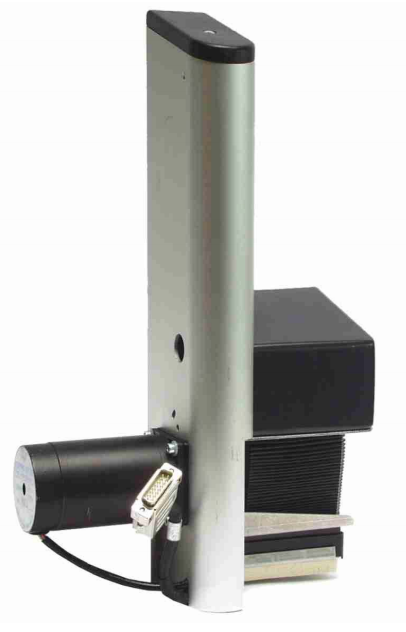

Novexx 64 Series Factory Installed LTSI Applicator 80/400 Option X0885

Novexx 64 Series Factory Installed LTSI Applicator 80/400 Option X0885

$5,129.00

Novexx 64 Series Option. Factory Installed LTSI 80/400 electric applicator, max. label size 80x80mm, stroke length 400mm, includes PCL. LTSI applicator arm attached to the front of the printer allows faster labeling of unique items. They take self-adhesive labels from the printer’s dispenser mechanism and stick these onto moving or non-moving products. Part Number X0885.

Only available for peripheral versions of Novexx 64 series printers.

Properties

LTSI = Light Touch Stepper Industrial.

Light Touch means that the applicator reverses shortly after it encounters resistance, i.e. a product. This has the advantage that it also enables products of different heights to be labeled without needing to adjust the applicator.

Stepper

The LTSI is driven by a stepper motor (sold separately).

Industrial

This indicates the high - industrial - quality of the guidance.

Mode of Operation

The LTSI waits in the zero position and sucks the label onto the foam plastic plate on its underside as soon as the label is dispensed. The suction pressure required for this is generated by a blower. The LTSI then extends its ‘telescopic arm’ until it encounters resistance, presses the label firmly against the product and immediately reverses. By means of this automatic return (‘Light Touch’), even products with different heights can be labeled with nothing further required. The unevenness of the product surface is compensated to a certain extent by the foam plastic plate.
