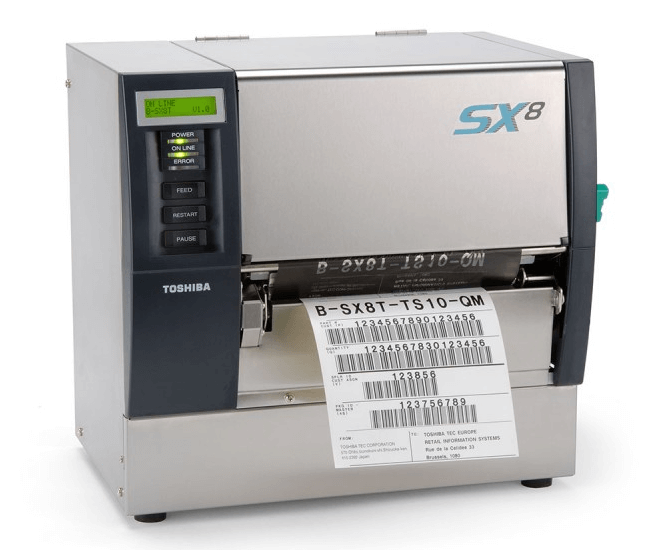

B-SX8T-TS12-QM-R, Toshiba TEC B-SX8 barcode printer
Thermal Transfer/Direct Thermal, 305 dpi, 8 ips, 8.40 Print Width, Ribbon Save, 16MB Flash, 16MB SD-RAM, Parallel, LAN, USB, SNMP Capability
B-SX8T
- 8" Thermal Transfer (Near Edge Head)
- Resolution: 305 DPI
- Speed: 8 IPS
- Rugged Legacy Wide-Format Printer
- Designed for Volume Production in 24/7 Operations
- Available in U.S. and Latin America
B-SX8T SPECIFICATIONS
Technology - Thermal Transfer / Direct Thermal
Resolution - 305 dpi
Media Pitch - Min. 10.0 mm (0.39") Max. 1,368.0 mm (53.9")
Media Width (w/backing paper) - Min. 101.6 mm (4.0") Max. 225.0 mm (8.86")
Print Speed - Up to 203.2 mm/s (8 ips)
Interfaces - Bi-Directional Parallel Port, USB2.0 Port, LAN (10/100Base), Opt. Serial Port, Opt. Expansion I/O, Opt. Wireless LAN
Barcodes - UPC/EAN/JAN, Code39, Code93, Code128, EAN128, NW7, MSI, Industrial 2 of 5, ITF, Postnet, RM4SCC, KIX-Code, GS1Databar, Customer Bar Code
2D Codes - Data Matrix, PDF 417, Maxicode, QR code, Micro PDF 417, CP Code
Fonts - Bitmap Font (21 fonts), Outline Font (4 types), Price Font (3 types), Writable Characters, Opt. True Type Font (20 types)
Options - Cutter Module, Strip Module, Wireless LAN Board, Serial Interface Board, Expansion I/O Board, RTC (Real Time Clock)
Dimensions (W x D x H) - 16.4 x 11.4 x 15.6 in
Weight - 55.2 lb
Duty Cycle**:30,000 labels / day
