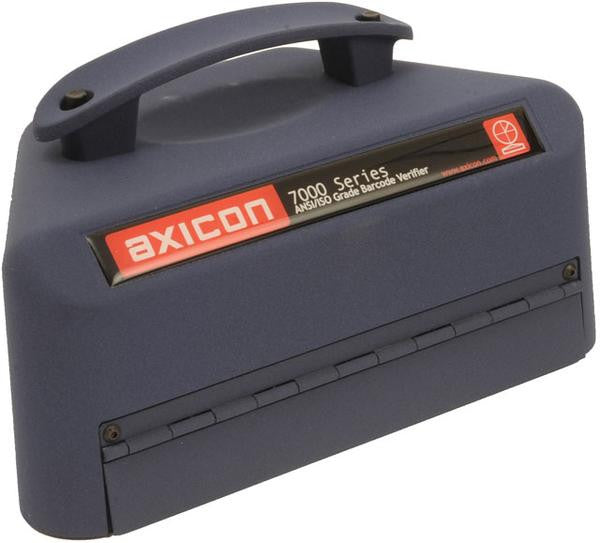

Axicon PV-1000/7015 - V2PV7015

The 7015 can be attached directly to a PC to operate as a PC verifier. When 7015 is attached to PV-1000 it is portable.

The Axicon 7015 barcode verifier is designed to verify large linear barcodes with a maximum width (including quiet zones) of 195 mm. This means it can be used to check all barcodes used in general distribution, whether they appear on outer cases or on pallet labels (EAN-13, UPC-A, ITF-14 and GS1-128). For anyone printing 100% sized ITF-14 symbols, or A5 or larger pallet labels, this verifier is perfect.

Features & Benefits

ISO/IEC verification with ANSI option, traditional verification, symbology auto-discrimination, automatic variable aperture, scan saving and loading, static reflectance meter, display of x-dimension and magnification, individual bar and space dimensional analysis. Product look-up option and other software plugins are also available.

Hardware

A CCD imager-based linear barcode verifier, designed to be ISO/IEC compliant. Aperture automatically switchable between aperture reference numbers 08, 10 and 20. Scan width 195 mm (including quiet zones). Wavelength of light 660 nm. Weight: 1kg. Size: 215 x 120 x 125 mm.

Connectivity

USB2

System Requirements

PC running any currently supported version of Microsoft Windows, or the Axicon PV-1000 portable display unit.

The verifier is supplied as the verifier read-head, its data cable, a CD with the Axicon verifier software (in several languages), a quick start guide, a calibration card and compliance certificates in a protective carry case.
