Axicon V6525S ANSI/ISO Barcode Verifier "S" Range for continuous scanning - GoZob.com

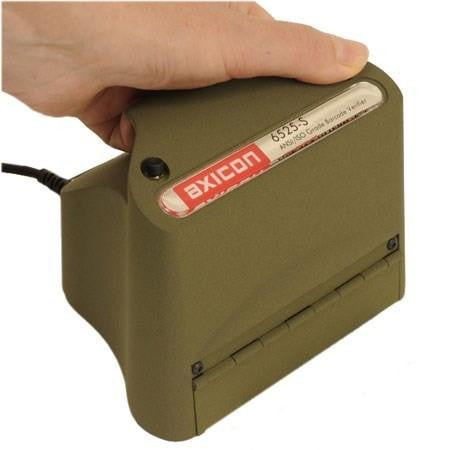

Axicon 6525-S Barcode Verifier "S" Range for continuous scanning - V16525S ANSI/ISO

$4,045.50 $4,495.00

The Axicon 6525-S barcode verifier is designed to verify linear barcodes with a maximum width, including quiet zones, of 125 mm. This means it can be used to check all GS1 symbols used at the retail point-of-sale (EAN-13, EAN-8, UPC-A and UPC-E, GS1 Databar), those used on outer cases (EAN-13, ITF-14, and GS1-128), and on logistics labels (GS1-128). For anyone printing barcode labels using a 100 mm (4 inch) wide printhead, this verifier is perfect. It can also be used to check Code 39, Code 128, HIBC, CIP, PZN and other codes.

It cannot be used to check 100% sized ITF-14 symbols, or A5 sized logistics labels printed using a 150 mm (6 inch) wide printhead.

Features & Benefits

The ‘S’ range of Axicon verifiers has a continuous scan feature, which means that obtaining at least ten different readings throughout the height of the barcode (as required by ISO/IEC) is much faster. Simply place the verifier slightly above or below the barcode, press the trigger and slide the verifier over the code – in less than a second you can have results of up to 100 scans of the code at different points in the bar height.

ISO/IEC verification with ANSI option, traditional verification, symbology auto-discrimination, automatic variable aperture, scan saving and loading, static reflectance meter, display of x-dimension and magnification, individual bar and space dimensional analysis. Product look-up option and other software plugins are available to validate data content of codes such as PZN, CIP, ISBN, ISSN.

Hardware

A CCD imager-based linear barcode verifier, designed to be ISO/IEC compliant. Aperture automatically switchable between aperture reference numbers 05, 06, 10 and 20. Scan width 125mm (including quiet zones). Wavelength of light 660 nm. Weight: 180g. Size: 145 x 113 x 128 mm.

Connectivity

USB

System Requirements

Designed to function with a PC running any currently supported version of Microsoft Windows. It does not work with the Axicon PV-1000 portable display unit.

The verifier is supplied as the verifier read-head, its data cable, a CD with the Axicon verifier software (in several languages), a quick start guide, a calibration card and compliance certificates in a protective carry case.
