Axicon 6025-S Barcode Verifier "S" Range for continuous scanning - V16025S ANSI/ISO
The Axicon 6025-S barcode verifier is designed to verify small linear barcodes (with a maximum length, including quiet zones, of 2.6") typically used on products scanned at the retail point-of-sale, or pharmaceutical products scanned at the point-of-care. These barcodes include EAN-13, EAN-8, UPC-A, UPC-E, Code 39, Code 128, HIBC, GS1 DataBar, GS1-128, CIP 39 and Laetus Pharmacode*. This verifier is perfect for product manufacturers, label printers, printers and packagers, and pre-press studios.
*Laetus Pharmacode verification requires dedicated additional software.
Features & Benefits

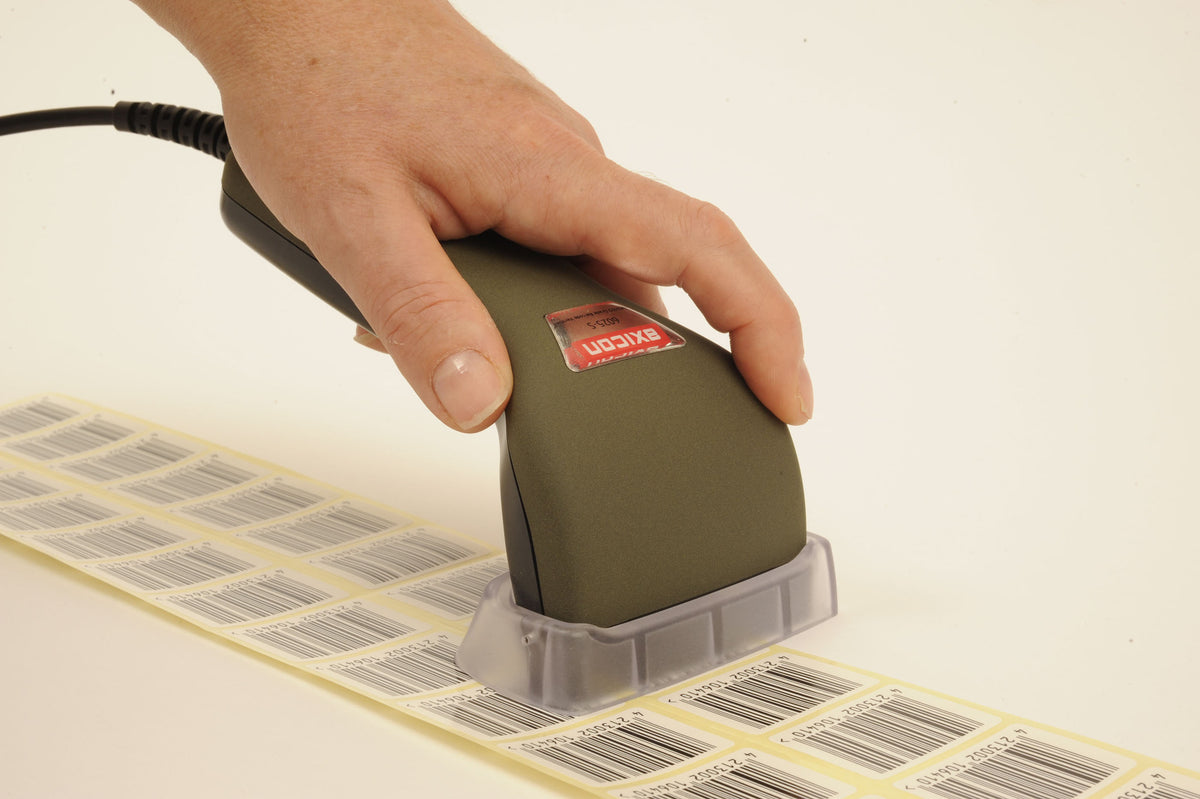

The ‘S’ range of Axicon verifiers has a continuous scan feature, which means that obtaining at least ten different readings throughout the height of the barcode (as required by ISO/IEC) is much faster. Simply place the verifier slightly above or below the barcode, press the trigger and slide the verifier over the code – in less than a second you can have results of up to 100 scans of the code at different points in the bar height.
ISO/IEC verification with ANSI option, traditional verification, symbology auto-discrimination, automatic variable aperture, scan saving and loading, static reflectance meter, display of x-dimension and magnification, individual bar and space dimensional analysis. Product look-up option and other software plugins are available to validate data content of codes such as PZN, CIP, ISBN, ISSN.
Hardware
A CCD imager-based linear barcode verifier, designed to be ISO/IEC compliant. Aperture automatically switchable between aperture reference numbers 03, 05, 06, 10 and 20. Scan width 66mm (including quiet zones). Wavelength of light 660 nm. Weight: 180g. Size: 165 x 75 x 55 mm.
Connectivity
USB
System Requirements
Designed to function with a PC running any currently supported version of Microsoft Windows. It will not work with the Axicon PV-1000 portable display unit.
The verifier is supplied as the verifier read-head, its data cable, a CD with the Axicon verifier software (in several languages), a quick start guide, a calibration card and compliance certificates in a protective carry case.
View product information and specification.
Usually ships in 3 to 5 days.
