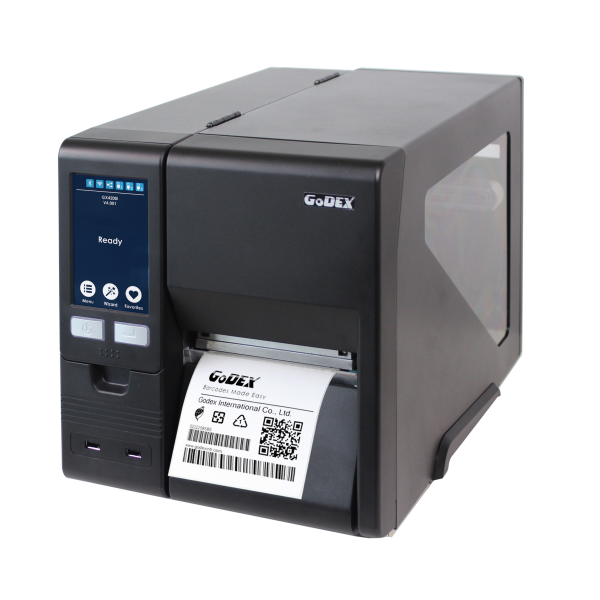

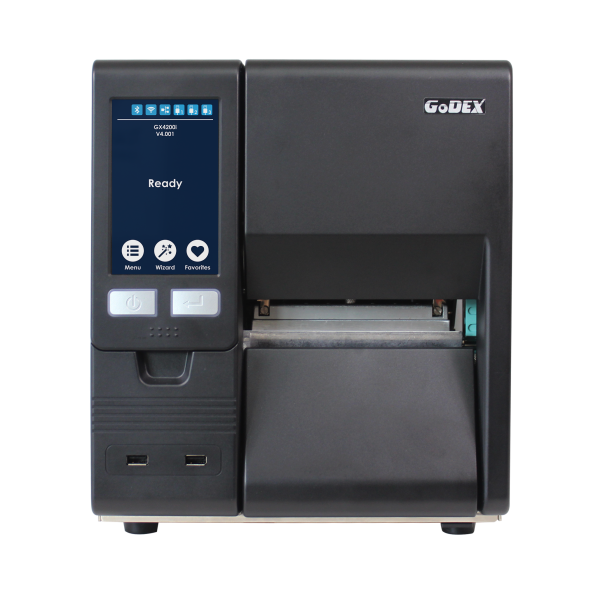

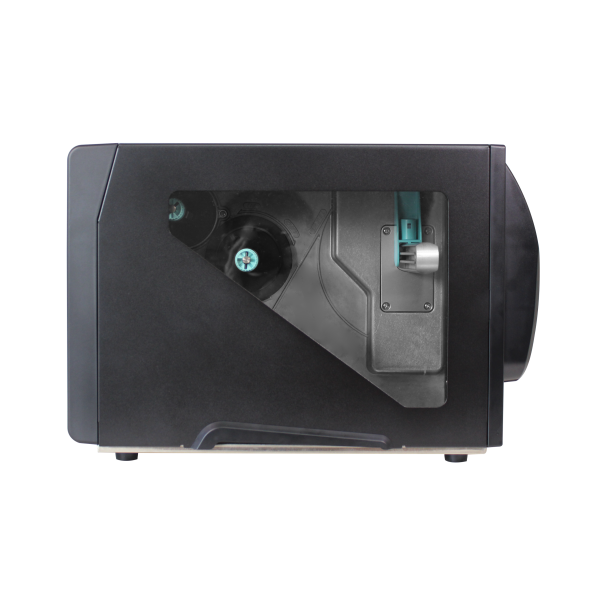

011-X6i001-000 Godex GX4600i, 600 dpi, Thermal Transfer Printer

011-X6i001-000 Godex GX4600i, 600 dpi, Thermal Transfer Printer

Ultra-high speed Industrial Thermal Printer with an intuitive 5” video touch screen
The GODEX GX4600i, in its 600 dpi version, produces razor sharp results while maintaining the fastest 600 dpi throughput at 8 IPS. The GX4600i comes fully equipped to support your most demanding applications. With a robust steel design, the GX4600i will thrive in all environments.

• Speed and Quality-The GODEX GX4600i, in its 600 dpi version, produces razor sharp results while maintaining the fastest throughput in the industry at 8 IPS.
• Fully Loaded-Brimming with 256MB of flash memory, the GX4600i has more than enough storage for 1000’s of labels, fonts and/or images, making standalone functionality far more flexible.
• Intuitive-Equipped with a 5” LCD touch screen and 16GB of storage the GX4600i offers intuitive controls and functionality.
• Video assist-With built-in video assisted guidance, printer operation has never been easier.
• Favorites & Icons-Have a preferred setting? The GX4600i offers the ability to save your favorite settings within a central, convenient location.
• Upgradable resolution-Need a higher resolution printer? No problem. Easily upgrade the printer’s resolution with a simple printhead swap from 203, to 300, to even 600 dpi.

Specs

Print method - Thermal Transfer / Direct Thermal
Resolution - 600dpi (24 dot/mm)
Print speed - Up to 8 ips (203.2 mm/s)
Print width - 4.09” (104mm) / 4.16” (105.7mm) / 4.16” (105.6mm)
Print length - 0.16” (4 mm)** to 180” (4572 mm) / 0.16” (4 mm)** to 100” (2540 mm) / 0.16” (4 mm)** to 30” (762 mm)
Processor - 32 Bit RISC CPU
Memory - Printer : 256MB Flash (128MB for user storage) ; 256MB SDRAM 16GB for display

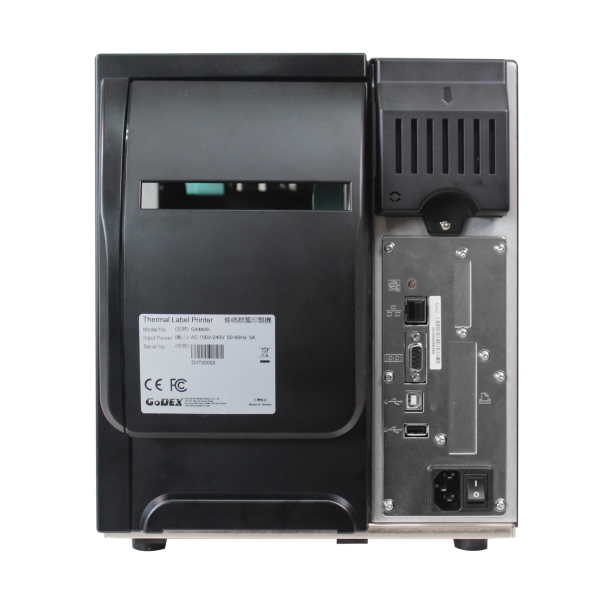

Interfaces - Serial port: RS-232 (DB-9) • USB Device port (B-Type) • 3 USB Host ports (A-Type). 2 ports at the front panel, 1 port at the rear panel • IEEE 802.3 10/100Base-Tx Ethernet print server (RJ-45)

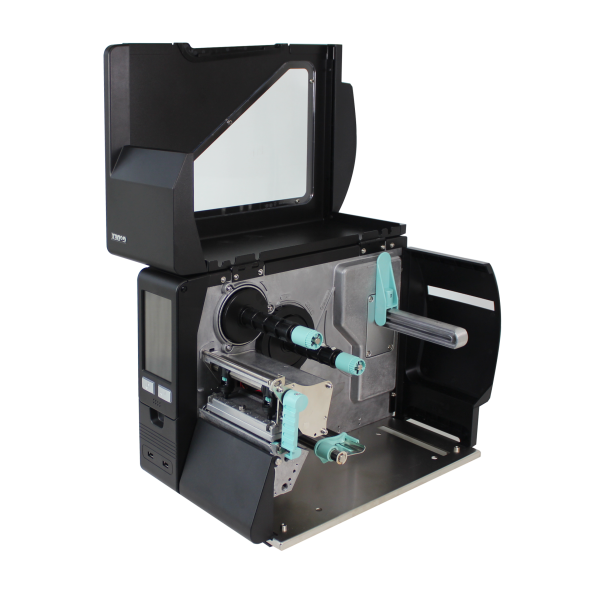

Ribbon - Length: 1476’ (450 m) Max. Width: 1.18” (30 mm) Min.; 4.33” (110 mm) Max. Ribbon roll diameter: 3” (76.2 mm) Core diameter: 1” (25.4 mm)
Control Panel - Backlight 5” touch screen LCD supports on-board videos • 1 Power on/off button with blue color LED backlight • 1 Control key: FEED/PAUSE/CANCEL with dual color (green/red) LED backlight • 1 Calibration button at the rear panel
