011-H8300L-A00 Godex HD830i Thermal Barcode Printer

011-H8300L-A00 Godex HD830i Thermal Barcode Printer

The HD830i is a rugged printer of exquisite design which includes significant characteristics of high-performance electronics, reliable mechanism, user-friendliness, and easy maintenance design.

• 3.2” color touchscreen facilitates intuitive navigation. Adjustable to 15°.
• Dual-Colored status LEDs and calibration button for simplicity.
• Robust metal casing and a solid print mechanism to take on heavy duty jobs
• Outstanding breadth: max label width 10”/ Max print width 8.64”.
• Optional wireless connectivity: Bluetooth or Wi-Fi module
• Top cover designed for ease of motion: heightened safety and comfort.

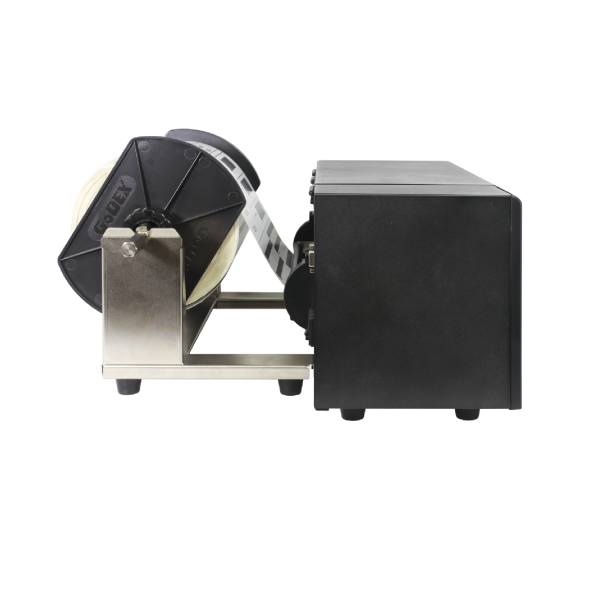

• A sturdy external label stand for up to 10” roll diameters included.
• Adjustable media detectors: including reflective and see-through sensors
• Advanced adaptive dampening technology to optimize print quality
• Internal Media Pressure plate is designed to stabilize the label printing process.

Specs

Print method - Thermal Transfer / Direct Thermal
Resolution - 300 dpi
Print speed - up to 4 ips
Print width - 8.64” (219.5mm)
Print length - Min. 1” (25.4 mm)** ; Max . 40” ( 1,016 mm)
Processor - 32-bit RISC CPU
Memory - Flash 128 MB Flash (60 MB for user storage) SDRAM 32 MB
Interfaces - USB 2.0 (B-Type) • Serial port: RS-232 (DB-9) • IEEE 802.3 10/100 Base-Tx Ethernet port (RJ-45) • USB Host (A-Type) Type)
Ribbon - Length Max.981’ (300 m) • Width Min. 4.3” (110 mm) – Max. 8.66” (220 mm) • Core diameter 1” (25.4 mm)
Control Panel - Backlight 3.2” touch screen LCD • 1 Power on/standby button with dual colour LED backlight • 1 FEED / PAUSE / CANCEL button with dual colour LED : Ready (Green); Error (Red) • 1 Calibration button at rear panel
