The Axicon 6515 mid-sized barcode verifier has been designed to read linear barcodes with a width of up to 125 mm (4.9”) including quiet zones. This means only one verifier is needed to check all your GS1 barcodes – EAN/UPC, ITF-14 and GS1-128 – if the outer case and logistics label barcodes are not at their maximum size. For companies using a 100 mm (4”) wide thermal transfer printer for all their outer case barcode labeling, this verifier is perfect. It is used by manufacturers worldwide.
It cannot be used to check 100% sized ITF-14 symbols, or A5 sized logistics labels printed using a 150 mm (6 inch) wide printhead.

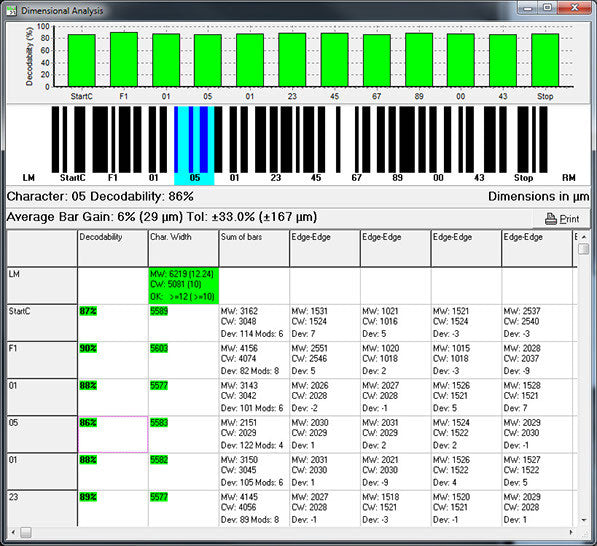

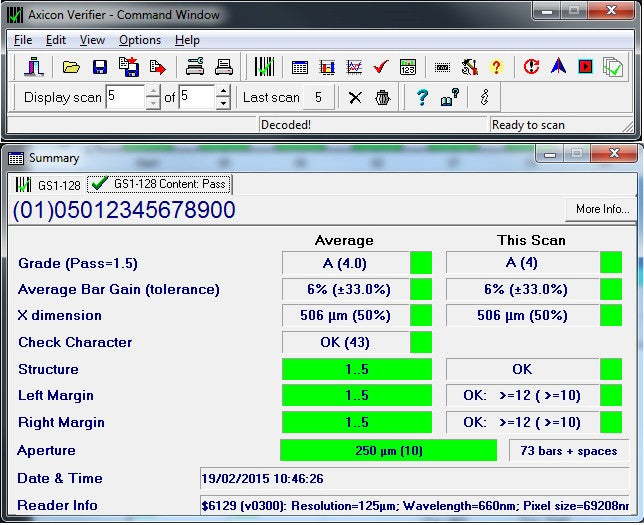

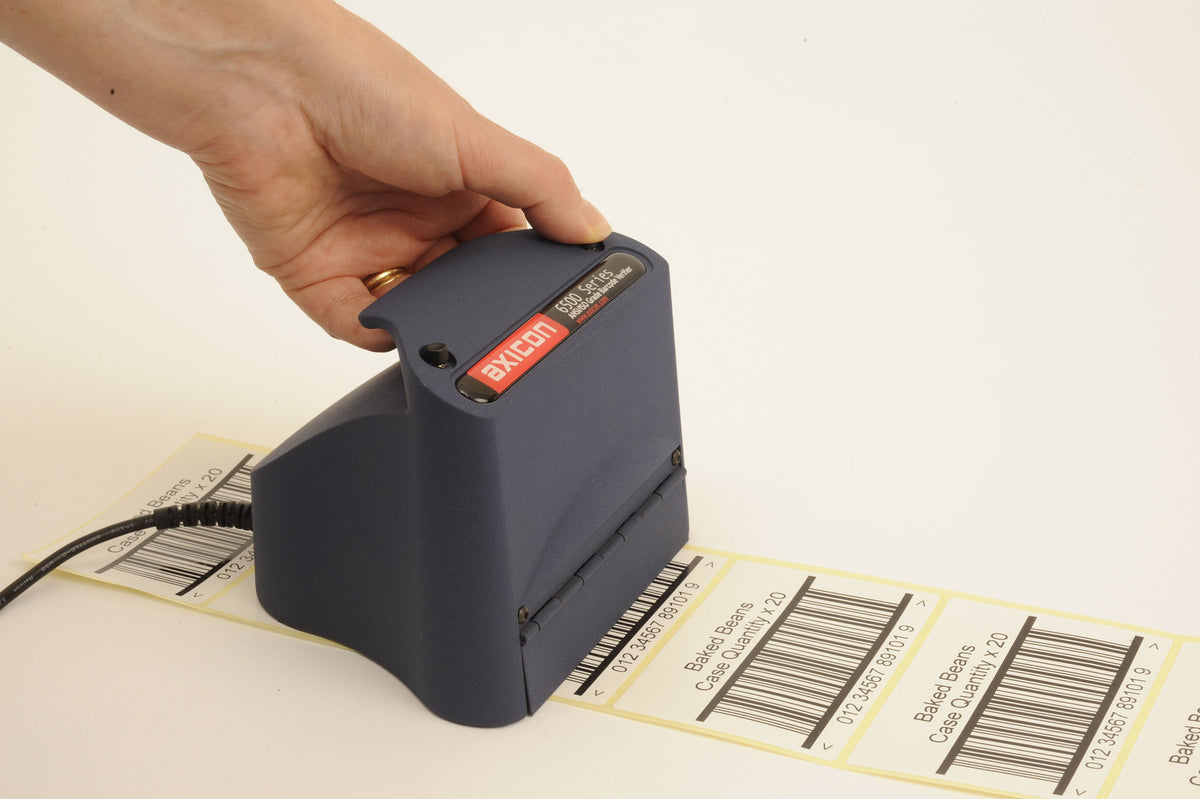

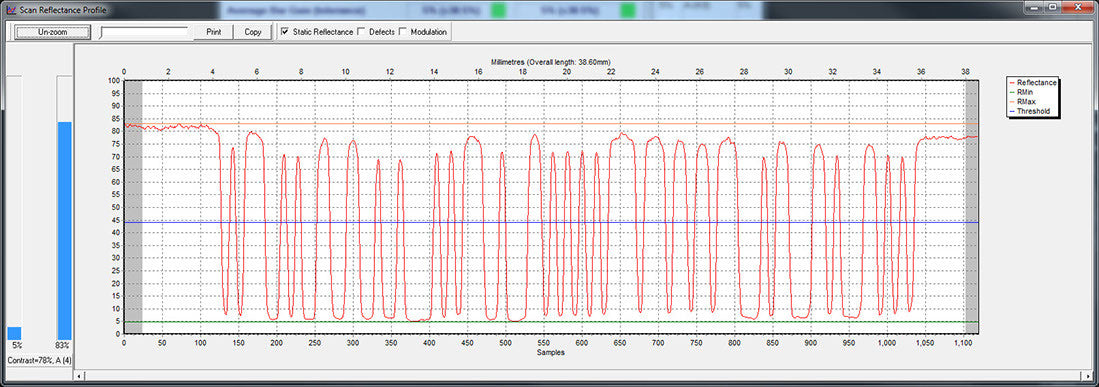

Lightweight and portable, needing only a USB connection. ISO/IEC verification with ANSI option, traditional verification, symbology auto-discrimination, automatic variable aperture, scan saving and loading, static reflectance meter, display of x-dimension and magnification, individual bar and space dimensional analysis. Product look-up option and other software plugins are available to validate data content of codes such as PZN, CIP, ISBN, ISSN.
Designed to function with any PC running any currently supported version of Microsoft Windows or the Axicon PV-1000 portable display unit. The software is always updated to meet latest requirements of the GS1 General Specifications and is available free of charge from our website.

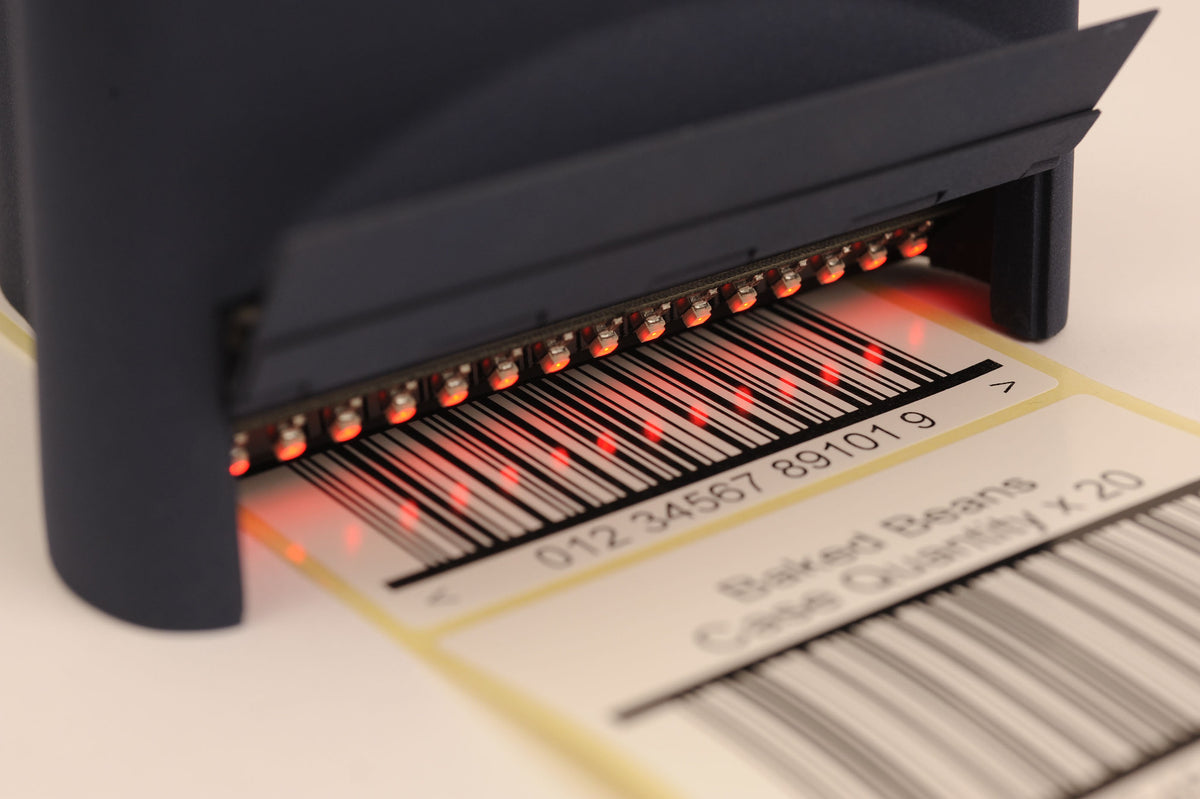

A CCD imager-based linear barcode verifier, designed to be ISO/IEC compliant. Aperture automatically switchable between aperture reference numbers 05, 06, 10 and 20. Scan width 125mm (including quiet zones). Wavelength of light 660 nm. Weight: 180g. Size: 145 x 113 x 128 mm.
Designed to function with a PC running any currently supported version of Microsoft Windows. It does not work with the Axicon PV-1000 portable display unit.
The verifier is supplied as the verifier read-head, its data cable, a CD with the Axicon verifier software (in several languages), a quick start guide, a calibration card and compliance certificates in a protective carry case.
Normally ships in 3 to 5 days.
