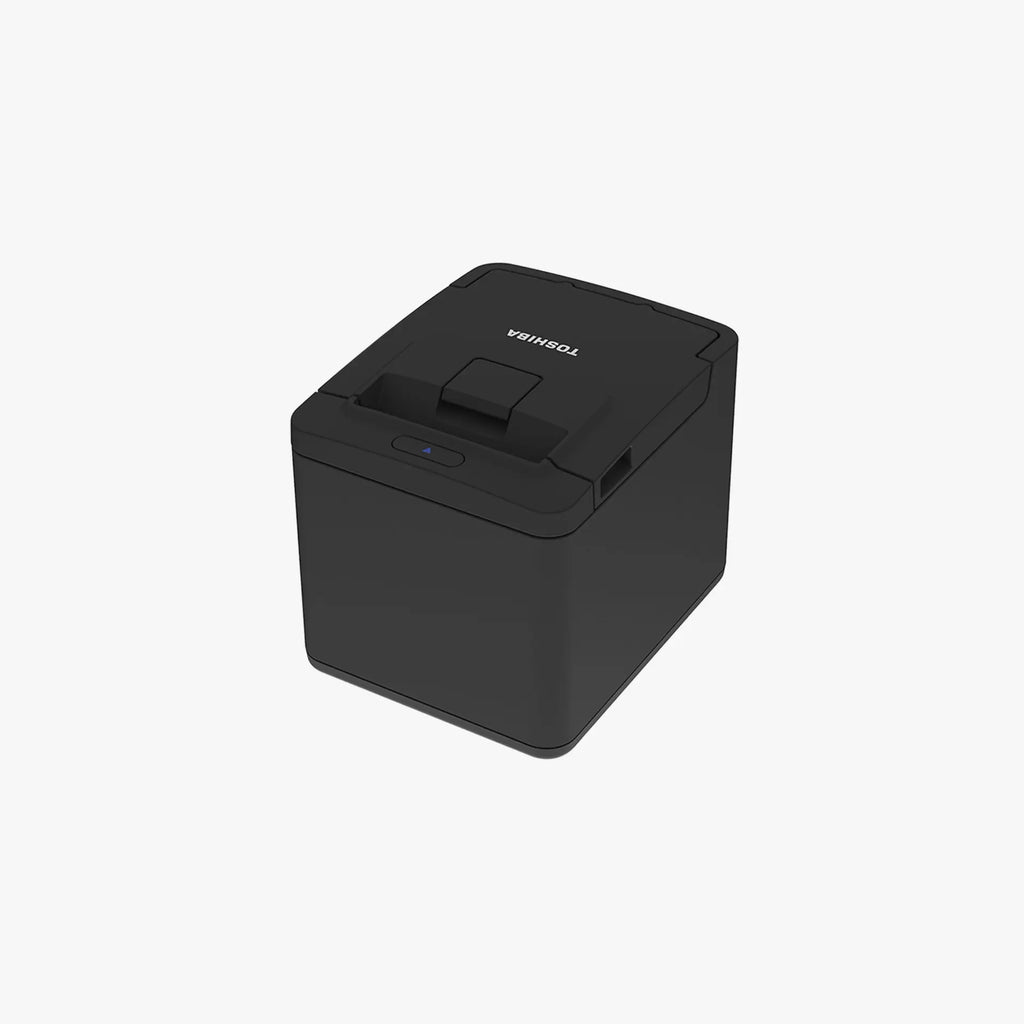

HSP100EPSUKIT - 3" 200 DPI 10 IPS - DESKTOP DIRECT THERMAL/CENTER - FLAT HEAD/PSU - ETHERNET/USB - ESC-POS

HSP100EPSUKIT - 3" 200 DPI 10 IPS - DESKTOP DIRECT THERMAL/CENTER - FLAT HEAD/PSU - ETHERNET/USB - ESC-POS

Features

• Mid-range Receipt Printing (254 mm/sec; 203 dpi)

• Splash-resistant (IP21 Certified)

• Easy-to-use, Maintain and Integrate

• ENERGY STAR® Certified

• Paper Management and Anti-jam Technology

• Available in U.S. and Latin America

Specifications

Technology
Direct Thermal

Resolution
203 dpi

Print Speed
254 mm/sec

Media Width
80 mm paper width – 72 mm print area
58 mm paper width – 52 mm print area

Interfaces (Standard)
USB Type-B: USB 2.0 High Speed Printer class
USB Type-A: USB 2.0 High Speed (for firmware/config update)

Interfaces (Optional)
Ethernet (10/100BASE-T), RS232

Fonts
Font Size 1: Font A (12 x 24), Font B (9 x 24)
Font Size 2: Font A (13 x 28), Font B (10 x 28)

Code Pages
CP 437 (Default), CP 850, CP 860, CP 863, CP 865, CP 852, CP 866, CP 857, CP 1252, CP 858, CP 1253, CP 1254, CP 1256

Barcode
UPC-A, UPC-E, JAN-13(EAN13), JAN-8(EAN8), CODE39, Interleaved 2 of 5(ITF), CODABAR(NW-7), Code 93, Code 128, PDF417, GS1 DataBar, QR code

Drivers
Native Windows Driver, Virtual Serial Port (VSP) Driver, UPOS Drivers (OPOS and JavaPOS – Windows/Linux), Android and iOS SDK

Supported OS
Windows 7/8/10, Windows Server 2008/2012/2016, SUSE SLED 11 (SP3) – 32 bit, SUSE SLED 12 (32 and 64 bit), Redhat 6.6 (32 bit), 7.2 (64 bit) and Ubuntu, Andoid and iOS

Dimensions (W x D x H)
134.1 mm x 163.9 mm x 136.4 mm
