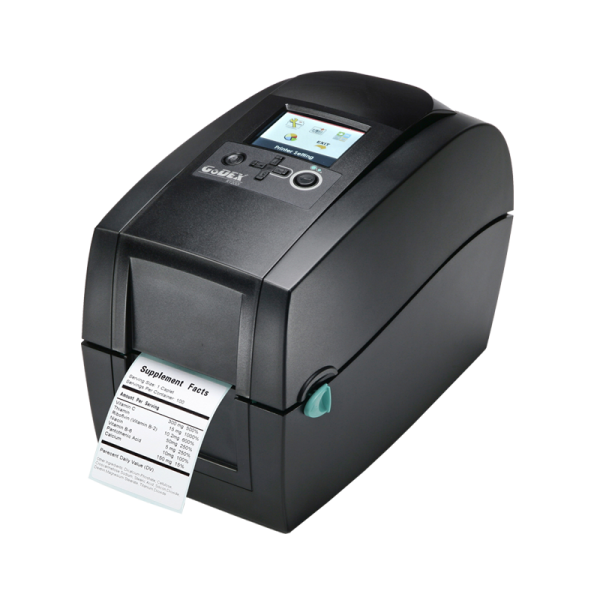

011-R3iF01-001 Godex Thermal Transfer Printer with Color Display
011-R3iF01-001 Godex Thermal Transfer Printer with Color Display
The small footprint RT230i is a perfect printer solution where space is tight and value pricing is important.
- Color LCD and operation panel for easy intuitive operation
- Compact size and unique industrial design
- Modern clam-shell design makes it simple to load labels
- Ethernet, Serial and USB ports are standard features adding flexibility and power
- Innovative calibration button makes Label Calibration simple and fast
- Full-range adjustable sensor, enables printing on small and difficult labels
- USB Host for extension memory and standalone operation
- EZPL, GEPL and GZPL language support
- Free GoLabel label design software
- 300 DPI model
Specs
Print Method - Thermal Transfer / Direct Thermal
Resolution - 300 dpi (12 dot/mm)
Print Speed - 5 ips (127 mm/s)
Print Width - 2.12” (54 mm) / 2.24” (56.9mm)
Print Length - Min. 0.16” (4 mm)** ; Max . 68” ( 1727 mm) / Min. 0.16” (4 mm)** ; Max. 30“(762 mm)
Processor - 32-bit RISC CPU
Memory - Flash: 8 MB Flash (4 MB for user storage), SDRAM : 16 MB
Interfaces - USB 2.0 (B-Type) • Serial port: RS-232 (DB-9) • Ethernet port (RJ-45) • USB Host (A-Type)
Ribbon - Length: 360’ (110 m) Width: 2.20” (56mm) - 2.32” (59mm) Core diameter: 0.5” (12.7 mm)
Control Panel - Color TFT LCD with navigation button • Power on/off button • Calibration button • Control key: FEED
