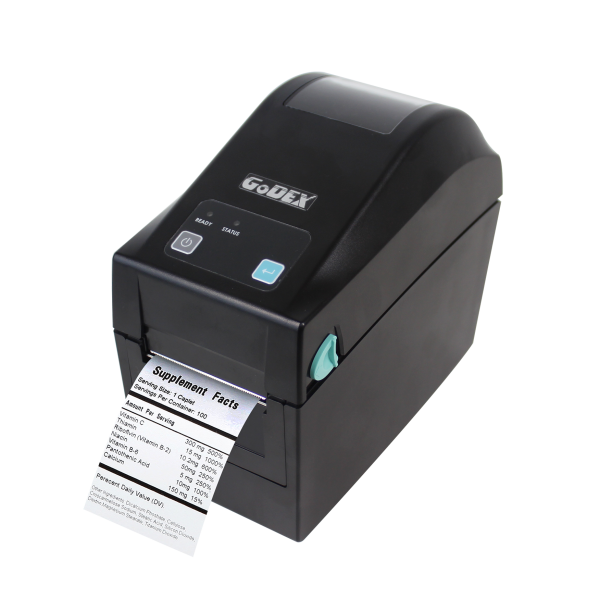

011-D23E01-000 Godex DT230 2" 300 dpi Direct Thermal Printer
011-D23E01-000 Godex DT230 2" 300 dpi Direct Thermal Printer
The small in size, the powerful in function!
The DT200 series is an ingenious design that brings several functions into one platform. It supports 300dpi printing resolution. A full line of optional accessories is available and the DT200L supports linerless media printing. All your needs can be satisfied with this series.
- Supports 300 dpi printing resolution
- Small footprint with a wall-mountable design for space optimization
- The innovative easy-to-use auto-calibration button facilitates media
- detection and positioning
- Adjustable TPH print line to optimize printability
- Multiple connection interfaces for multiple applications
- Optional wireless connectivity: Bluetooth or Wi-Fi module
- Supports various types of media, including linerless media with the
- DT200L Linerless models.
- External media stand available to satisfy large printing projects
- (not compatible with Linerless models)
Specs
Print Method - Direct Thermal
Resolution - 300 dpi (12 dots/mm)
Print Speed - 5 IPS (127 mm/s)
Print Width - 2.12” (54 mm) / 2.24” (57 mm)
Print Length - Min. 0.16” (4 mm)** ;Max. 68” (1727 mm) / Min. 0.16” (4 mm)** ;Max. 30“(762 mm)
Processor - 32 Bit RISC CPU
Memory - Flash: 128 MB (60 MB for user storage) SDRAM: 32 MB
Interfaces - USB 2.0 • Serial port: RS-232 (DB-9) • Ethernet 10/100 Mbps
Ribbon - N/A
Control Panel - Two LEDs : Ready, Status • Power on / off button • Calibration button • Control key : FEED
